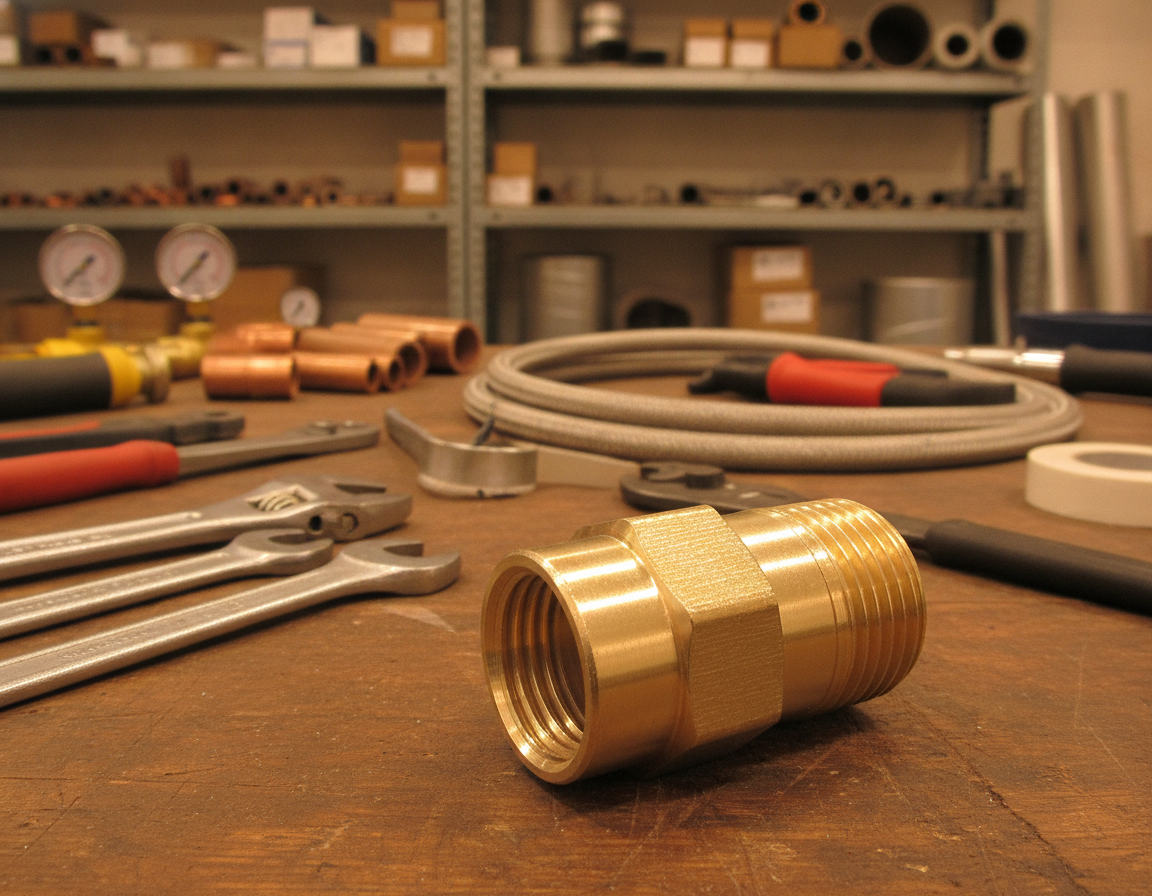

Female compression fittings give installers a simple and dependable method for connecting pipes and tubing. They do away with the need for solder or welded joints. This overview covers the function of female compression fittings, highlighting how the compression nut and ferrule ensure a tight seal. It also explains their importance in both plumbing and HVAC applications.
Max Adaptor
Opting for high-quality pipe fittings can meaningfully cut energy losses. This, in turn, prevents refrigerant or water leaks, which can create risks for the environment. HVAC systems, which include components like compressors, condensers, expansion valves, and evaporators, depend on robust connections. Selecting the appropriate female compression fitting and compatible materials—such as brass, copper, stainless steel, PVC, or PEX—is important for long-term system performance.
In plumbing, PEX or PVC with compression fittings are frequently used for their ease of service and low heat exposure. In comparison, refrigeration lines require fittings that can tolerate thermal fatigue and hold a seal across a wide temperature range. InstallationPartsSupply.com and its product lines serve these needs, carrying common sizes and parts such as ferrules and compression nuts.
Important Highlights
- Female Compression Fitting uses a nut-and-ferrule system to seal without soldering.
- Using the proper fitting material—brass, copper, stainless, PVC, or PEX—reduces the risk of corrosion and failure.
- Well-matched fittings help cut energy loss and limit refrigerant or water leaks in HVAC and plumbing systems.
- Compression fittings guide resources and suppliers like InstallationPartsSupply.com streamline part selection.
- Review ferrule condition and tighten per manufacturer torque to support a long-lasting seal.
How Compression Fittings Work In HVAC And Plumbing Applications
Compression fittings connect pipes and tubing without solder or welding. They work well with copper, PEX, PVC, and stainless lines where heat or flame is best avoided. Many tradespeople buy parts from Installation Parts Supply to support consistent quality and fit.
What A Compression Fitting Is And How It Works
A compression fitting relies on a nut and a ferrule olive pressed against the pipe by the fitting body. Tightening the nut compresses the brass ferrule or sleeve, which bites the outer pipe and forms a seal. This setup explains the common question of what is a compression fitting by showing how mechanical compression creates a leak-tight joint.
Key Differences Between HVAC And Plumbing Fittings
HVAC fittings must tolerate refrigerants, wider temperature swings, and thermal fatigue. Plumbing fittings are commonly selected for potable water, wastewater, and pressure from building systems. In HVAC vs plumbing fittings, selection depends on media, service temperature, and pressure ratings.
HVAC equipment such as split systems, VRF, and rooftop units often use copper fittings and brazed joints for refrigerant lines. Plumbing work favors PEX compression and PVC for drains, where solvent welds or crimp systems are common.
Compression Fitting Materials: Brass, Copper, Stainless Steel, PVC, And PEX
Copper fittings offer excellent thermal conductivity and corrosion resistance. Brass parts, including the brass ferrule, resist wear and are common in many compression fittings. Stainless steel suits corrosive or high-pressure environments.
PEX compression is often selected for domestic water lines because it withstands freeze-thaw cycles and is flexible. PVC remains a low-cost option for drains and certain chilled-water circuits when pressure is low.
| Material | Primary Use | Advantages | Drawbacks |
|---|---|---|---|
| Copper Material | Refrigerant circuits plus potable-water lines | Conductive, durable, solderable | More expensive and vulnerable to mechanical damage |
| Brass Material | Compression nuts, ferrules, fittings | Easy machining and corrosion resistance | May react with incompatible metals |
| Stainless steel | Demanding corrosive applications | Strong, durable, and resistant to corrosion | Higher cost and more difficult machining |
| PEX Material | Residential hot/cold water | Freeze-resistant with flexible handling | Needs compatible PEX compression hardware |
| PVC | Drains and low-pressure chilled water | Affordable and easy to work with | Unsuitable for high heat or high pressure |
Fitting Selection, Energy Efficiency, And Leak Prevention
Matching the fitting correctly limits leak risk and maintains system pressure. Across cooling circuits, a poor joint can release refrigerant and lower efficiency. Proper seals and compatible materials cut maintenance and lower energy waste.
Matching the right ferrule type and matching copper fittings or PEX compression hardware reduces the chance of galvanic corrosion and thermal fatigue. This approach supports service life and keeps HVAC and plumbing systems running efficiently.
Female Compression Fittings
A female compression fitting forms a seal on a pipe or tube end when a nut compresses the ferrule olive against the fitting body. This fitting creates tight connections without soldering, making it common in plumbing and HVAC. Unions and adapters allow quick disassembly for service or instrument changes.
Basic Definition And Common Fitting Styles
A common setup uses a female compression nut, a ferrule olive, and the fitting body. The nut connects to the fitting body and compresses the ferrule to grip the tube. Installers often use unions, straight fittings, or elbow bodies to adapt direction and access during maintenance.
Compatible Materials And Uses
Brass and copper are commonly used for refrigerant fittings and hot-water lines due to their ability to tolerate thermal cycles and resist deformation. Stainless steel works well in high-pressure or corrosive environments. PVC and PEX suit condensate and domestic water runs, but they require proper inserts or specific ferrules for secure joints.
Plumbing, HVAC, And Instrumentation Uses
For plumbing systems, female compression fittings link stops, valves, and supply lines without solder. Across HVAC service applications, technicians use them on refrigerant fittings between compressor, condenser, and evaporator where service access is critical. Serviceable gas and instrument lines frequently use compression parts for leak-tight, serviceable connections.
Comparison With Male Compression Fittings And Adapters
Female compression fittings receive a male end and form the receiving thread, while a 3 8 Male Compression Fitting provides that mating male component for tubing or ports. A 3/8 Valve Adapter helps technicians interface service valves and gauges to the system. Choosing matched materials prevents galvanic corrosion and keeps joints reliable under pressure and thermal change.
| Component | Typical Material | Common Use | Service Reminder |
|---|---|---|---|
| Female nut | Brass alloy | Plumbing supply lines, valve connections | Replace when rounded, cracked, or damaged |
| Ferrule olive | Brass or stainless steel | Creates compression seal on compatible tubing | Usually single-use after compression |
| Fitting body | Brass and stainless materials | Instrumentation and HVAC refrigerant fittings | Confirm refrigerant and pressure compatibility |
| 3 8 Male Compression Fitting | Copper and brass | Mating for female ports, small-diameter lines | Check thread and seat compatibility |
| 3/8 Valve Adapter | Brass material | Gauge and manifold connections | Match seals to refrigerant fittings |
| Installation Parts Supply product line | Multiple materials | Supplier for compatible kits and replacement parts | Choose compatible ferrules and nuts for longer service life |
Fitting Types, Sizes, And Adapters For HVAC And Plumbing Work
This section explores the various fitting types, sizes, and adapters essential for plumbing and HVAC projects. Installers use couplings, elbows, unions, and adapters to manage line routing, component isolation, and service access. The right combination of parts significantly impacts system performance, including pressure rating, temperature limits, and reliability.
Compression couplings and compression unions enable the creation of removable joints for maintenance and testing. Couplings work well for straight connections, while compression unions are better suited for components that need to be disconnected without disrupting the line. For short runs, a 3/8 Compression Coupling is often used in instrumentation and refrigeration applications.
Elbows and adapters help with tubing routing around obstacles and for connecting different types of fittings. A 3 8 Male Compression Fitting may connect to a female port or adapter, facilitating the integration of service valves and gauges. Installation Parts Supply catalogs include a wide range of these components, ensuring quick access on job sites.
Picking the correct fitting size matters, depending on the tube’s outside diameter and the ferrule and nut set. Check that the female compression fitting size matches the tube OD to prevent leaks. When working with 3/8″ lines, verify ferrule compatibility and torque specifications. Also check the system’s maximum pressure and temperature ratings before making a final selection.
Specialty parts such as the Max Adaptor and 3/8 Valve Adapter are made for connecting gauges, service ports, and small refrigerant lines. These adapters make easier the process of charging and diagnostics in HVAC systems. In compact HVAC systems, a 3/8 Valve Adapter is commonly used to link manifold hoses to service valves on compact systems.
Material choice balances between durability and corrosion resistance. Stainless steel is durable and resistant to corrosion, making it suitable for harsh environments. Brass and copper work well in refrigerant circuits and heat transfer lines due to their balance of machinability and corrosion protection. PEX and PVC suit low-pressure condensate and water lines but not for high-pressure refrigerant service.
The environmental impact of fittings is influenced by leak prevention and recyclability. Well-sealed metal fittings can lower refrigerant emissions and can be recycled at the end of their life. Choosing quality parts from dependable suppliers reduces failures and minimizes long-term environmental risk.
Use the comparison below to select between common options by application, pressure, temperature, and reusability.
| Type Of Fitting | Typical Use | Max Pressure Typical | Service Temperature Range | Reuse Potential |
|---|---|---|---|---|
| Brass coupling | Instrumentation, small water lines, refrigerant | Up to 3,000 psi varies by spec | Approximately -65°F to 250°F | Limited, because ferrules are often replaced |
| Compression Union brass/stainless | Disconnect points for maintenance | As high as 2,500 psi | -65°F to 300°F | High; designed for disconnects |
| 3/8 compression connection | Small plumbing, refrigeration, and instrumentation use | Pressure rating must be verified | Review material specs before HVAC service | Some reuse possible, but service replacement is common |
| Small male compression fitting | Connection to service valves and gauges | Depends on refrigerant-rated brass or stainless construction | Designed for normal HVAC cycling when rated | Reusable if inspected and intact |
| Max Adaptor in brass or stainless | Specialized coupling for gauge and valve interfaces | High when designed for service-tool use | Meets HVAC temperature cycles | Reusable; built for repeated service |
| Plastic water fittings | Water and condensate lines at low pressure | Low pressure only; not for refrigerant service | Commonly around 32°F to 140°F | Reusable only in some applications with UV limits |
Before buying, check Installation Parts Supply or other reputable distributors for part numbers, material options, and pressure ratings. Confirm that the chosen 3/8 Valve Adapter or Max Adaptor matches both the tubing OD and the service fitting type to avoid mismatches on site.
How To Install And Maintain Compression Fittings
A reliable compression fitting installation starts with clean, square pipe ends and the right parts. When working with HVAC refrigerant lines, use copper and brass. For condensate or chilled water, PVC or PEX is best. Always follow manufacturer specs and ASME B31.5 to minimize energy loss and leaks.
Installing compression fittings correctly
1. Start by cutting and deburring the tube to a square face. 2. Next, slide the nut and ferrule onto the pipe in that order. 3. With softer plastic tubing, insert pipe inserts to keep the tube round before assembly. 4. Finger-tighten first the nut, then use the two-wrench technique to finish the joint.
Tools and techniques
Use a two-wrench method to hold the fitting body and turn the nut to prevent tube twist. Follow torque guidance from the fitting maker or Installation Parts Supply when available. Typical practice is to snug by hand, then add a limited number of wrench turns.
When to use pipe inserts
Pipe inserts are commonly required for soft plastic tubing like PEX or thin-wall PVC to prevent ovalization and ensure a leak-free seal. Skip inserts for solid copper or thick-walled metal tubing, where inserts can interfere with proper ferrule compression.
Common errors and ferrule removal
Avoid tightening too little or too much. Loose fittings leak; over-tightening deforms the ferrule and can make ferrule removal difficult. Most ferrules should be treated as single-use parts; plan to replace them when disassembling a joint.
How to remove a ferrule
Shut off the supply and relieve pressure first. Secure the fitting body with one wrench while loosening the nut with a second. Remove the nut and slide out the ferrule. When the ferrule is seized, apply penetrating oil, use a ferrule puller, or carefully cut the ferrule off without nicking the pipe.
How to install a 3/8 Valve Adapter
For compact 3/8″ service connections, prepare the tubing the same way and follow the two-wrench technique. Most 3/8 Valve Adapter installation steps mirror larger fittings but require careful attention to torque guidance to avoid crushing the tube or the adapter threads.
Routine inspection and maintenance
After pressurizing, inspect joints for weeps and tighten slightly if needed. Add routine checks for corrosion and thermal fatigue, especially on refrigerant circuits. Avoid installing compression connections where vibration will loosen them over time.
| Process Step | Action | Installer Tip |
|---|---|---|
| Initial Preparation | Cut the tube square, deburr, and clean it | Use a quality tubing cutter and deburring tool |
| Assemble | Slide nut, ferrule, then insert into fitting | Install pipe inserts in soft plastic tubing |
| Secure Joint | Snug by hand before using two wrenches | Follow torque guidance from manufacturer |
| Test | Test under pressure and check joints | Look for slow weeps and re-torque slightly if safe |
| Maintenance | Maintain regularly and replace used ferrules | Keep spares from Installation Parts Supply for quick repairs |
Summary
Using the correct compression fitting matters for plumbing and HVAC work. The material choice, whether brass, copper, stainless steel, PVC, or PEX, must match the service type. That helps maintain reliability and extends system life. Correct parts and proper installation can greatly reduce energy losses and refrigerant leaks, preserving performance and environmental health.
Compression fittings deliver a leak-free, solder-free solution. They consist of a nut, ferrule, and body. For a dependable seal, follow these steps: square-cut and deburr the tubing, use the two-wrench technique, and replace ferrules when reused. These techniques help ensure long-lasting, leak-tight connections in various applications, from copper piping to instrumentation.
For specific needs, such as 3/8″ lines, 3/8 Compression Coupling, or 3/8 valve adapters, be sure to match size and pressure ratings to the task. Quality components from trusted suppliers are key. Installation Parts Supply resources can assist in finding compatible fittings and adapters. Routine inspections and correct selection help maintain system efficiency and compliance.
Overall, dedicating time to material selection and correct assembly is essential. This ensures durable, leak-free connections. It supports optimal performance, fewer repairs, and less environmental harm.
