More than 60% of recent broadband deployments in metropolitan United States projects now specify fiber-to-the-home. This rapid shift toward full-fiber networks underscores the urgent need for dependable line output equipment.
Fiber Secondary Coating Line
Fiber Secondary Coating Line
Fiber Coloring Machine
Shanghai Weiye Optic Fiber Communication Equipment Co (www.weiye-ofc.com) delivers automated FTTH cable line output line systems for the United States market. Their turnkey FTTH Cable Production Line for High-Speed Fiber Optics brings together machines and control systems. The line produces drop cables, indoor/outdoor cables, and high-density units for telecom, data centers, together with LANs.
This modern FTTH cable making machinery offers measurable business value. The line offers higher throughput as well as consistent optical performance using low attenuation. This system further meets IEC 60794 as well as ITU-T G.652D / G.657 standards. Customers benefit from reduced labor costs and material waste through automation. Full delivery services include installation and operator training.
The FTTH cable production line package includes fiber draw tower integration, a fiber secondary coating line, and a fiber coloring machine. It also covers SZ stranding line, fiber ribbon line, compact fiber unit assembly, cable sheathing line, armoring modules, and testing stations. Control and power specs commonly use Siemens PLC with HMI, operating at 380 V AC ±10% and modular power consumption up to roughly 55 kW depending on configuration.
Shanghai Weiye’s customer support model covers on-site commissioning by experienced engineers, remote monitoring, together with rapid troubleshooting. It additionally delivers lifetime technical support as well as operator training. Clients are commonly expected to coordinate engineer logistics as part of standard supplier practice when ordering from FTTH cable machine suppliers.
Core Takeaways
- FTTH cable line solutions meet growing U.S. demand for fiber-to-the-home deployments.
- Complete turnkey systems from Shanghai Weiye combine automation, standards compliance, and operator training.
- Modular configurations use Siemens PLC + HMI and operate near 380 V AC with up to ~55 kW power profiles.
- Combined production modules cover drawing, coating, coloring, stranding, ribbon, sheathing, armoring, and testing.
- Modern FTTH cable manufacturing systems reduces labor, waste, and improves optical consistency.
- Technical support includes on-site commissioning, remote diagnostics, and lifetime technical assistance.
FTTH Cable Production Line Technology Explained
The fiber optic cable production process for FTTH calls for precise control at every stage. Manufacturers use integrated lines that combine drawing, coating, stranding, and sheathing. That setup boosts yield and speeds up market entry. It addresses the needs of both residential and enterprise deployments in the United States.
Below, we outline the core components and technologies driving modern manufacturing. Each module must operate with precise timing and reliable feedback. The choice of equipment influences product quality, cost, and flexibility for various cable designs.
Core Components Of Modern Fiber Optic Cable Manufacturing
Secondary coating lines apply dual-layer coatings, often 250 µm, using high-speed UV curing. Tight buffering and extrusion systems provide 600–900 µm jackets for indoor and drop cables.
SZ stranding lines use servo-controlled pay-off and take-up units to handle up to 24 fibers with accurate lay length. Fiber coloring machines employ multi-channel UV curing to mark fibers to industry color codes.
Sheathing together with extrusion stations create PE, PVC, or LSZH jackets. Armoring units add steel tape or wire for outdoor protection. Cooling troughs together with UV dryers stabilize profiles before testing.
Evolution From Traditional To Advanced Production Systems
Early plants used manual and semi-automatic modules. Lines were separate, with hand transfers and basic controls. Modern facilities move to PLC-controlled, synchronized systems with touchscreen HMIs.
Remote diagnostics and modular turnkey setups support rapid changeover between simplex, duplex, ribbon, and armored formats. That shift supports automated fiber optic cable manufacturing and cuts labor dependence.
Key Technologies Powering Industry Innovation
High-precision tension control, based on servo pay-off and take-up, keeps geometry stable during high-speed runs. Multi-zone temperature control using Omron PID and precision heaters ensures consistent extrusion quality.
High-speed UV curing and water cooling speed up profile stabilization while reducing energy use. Integrated inline testers measure attenuation, geometry, tensile strength, crush resistance, and aging data.
| Function | Typical Equipment | Advantage |
|---|---|---|
| Optical fiber drawing | Draw tower with automated tension feedback | Stable core diameter and reduced attenuation |
| Coating stage | Dual-layer UV curing coaters | Uniform 250 µm coating for durability |
| Coloring | Fiber coloring unit with multiple channels | Reliable color identification for field work |
| Fiber stranding | Servo-controlled SZ stranding line (up to 24 fibers) | Consistent lay length for ribbon and loose tube designs |
| Jacket extrusion & sheathing | Multi-zone heated energy-saving extruders | PE/PVC/LSZH jackets with tight dimensional control |
| Armoring | Armoring units for steel tape or wire | Improved outdoor mechanical protection |
| Cooling and curing | Cooling troughs plus UV dryers | Rapid stabilization and fewer defects |
| Quality testing | Inline geometry and attenuation measurement | Real-time quality control and compliance reporting |
Compliance with IEC 60794 and ITU-T G.652D/G.657 variants is standard. Manufacturers typically certify to ISO 9001, CE, and RoHS. These credentials help support diverse applications, from FTTH drop cable production to armored outdoor runs and data center high-density solutions.
Choosing cutting-edge fiber optic production equipment together with modern manufacturing equipment helps firms meet tight tolerances. This choice enables efficient automated fiber optic cable production as well as positions companies to deliver on scale and quality.
Key Equipment For Fiber Secondary Coating Line Operations
The secondary coating stage is critical, giving drawn optical fiber its final diameter and mechanical strength. It prepares the fiber for stranding and cabling. A well-tuned fiber secondary coating line controls coating thickness, adhesion, and surface quality. This protects the glass during handling.
Producers aiming for high-yield, high-output fiber optic cable manufacturing must match material, tension, and curing systems to process requirements.
High-speed secondary coating processes rely on synchronized pay-off, coating heads, together with UV ovens. Current systems achieve high production rates while minimizing excess loss. Precise tension control at pay-off together with winder stages prevents microbends and ensures consistent coating thickness across long runs.
Single and dual layer coating applications serve different market needs. Single-layer setups provide basic mechanical protection and a simple optical fiber cable production machine footprint. Dual-layer lines combine a harder inner layer with a softer outer layer to improve microbend resistance and stripability. This helps when fibers are prepared for connectorization.
Temperature control and curing systems are critical to final fiber performance. Multi-zone heaters and Omron PID controllers guide screw/barrel extruders to stable melt flow for LSZH or PVC compounds. UV curing ovens and water trough cooling stabilize the coating profile and reduce variation in excess loss; targets for high-quality single-mode fiber often aim for ≤0.2 dB/km at 1550 nm after extrusion.
Key components from trusted suppliers improve uptime and precision in an optical fiber cable production machine. Extruders such as 50×25 models, screws and barrels from Jinhu, and bearings from NSK are common. Motors from Dongguan Motor, inverters by Shenzhen Inovance, and PLC/HMI platforms from Siemens or Omron provide robust control and monitoring for continuous runs.
Operational parameters support preventive maintenance and process tuning. Typical pay-off tension ranges from 0.4 to 1.5 N for fiber reels, while radiation and curing speeds are adjusted to material type and coating thickness. A preventive maintenance cycle around six months keeps secondary coating processes stable and supports reliable high-speed fiber optic cable production.
Fiber Draw Tower And Optical Preform Handling
The fiber draw tower is the core of optical fiber drawing. It softens a glass preform in a multi-zone furnace. Then, it pulls a continuous strand with precise diameter control. That stage sets the refractive-index profile and attenuation targets for downstream processes.
Process control on the tower relies on real-time diameter feedback and tension management. That prevents microbends. Cooling zones and closed-loop systems keep geometry stable during the optical fiber cable manufacturing process. Advanced towers log metrics for traceability as well as rapid troubleshooting.
Output consistency supports single-mode fibers such as ITU-T G.652D as well as bend-insensitive types like G.657A1/A2 for FTTH networks. Draws routinely meet stringent loss figures. Excess loss after coating is kept at or below 0.2 dB/km for high-performance single-mode fiber.
Integration with secondary coating lines requires careful pay-off control. A synchronized handoff preserves alignment and tension as the fiber enters coating, coloring, or ribbon count stations. This connection ensures the optical fiber drawing step feeds smoothly into cable assembly.
Equipment vendors such as Shanghai Weiye offer turnkey options. These include testing stations for attenuation, tensile strength, and geometric tolerances. Such capabilities help manufacturers scale toward high-speed fiber optic cable production while maintaining ISO-level quality checks.
| System Feature | Purpose | Typical Goal |
|---|---|---|
| Multi-zone furnace | Consistent preform heating to stabilize glass viscosity | Stable draw speed and refractive profile |
| Real-time diameter control | Maintain core/cladding geometry and reduce attenuation | Tolerance ±0.5 μm |
| Managed tension and cooling | Prevent microbends and control fiber strength | Target tension based on fiber type |
| Automatic pay-off integration | Smooth transfer to coating and coloring | Synchronized feed rates for zero-slip transfer |
| Inline test stations | Verify loss, strength, and geometry | Loss ≤0.2 dB/km after coating for single-mode |

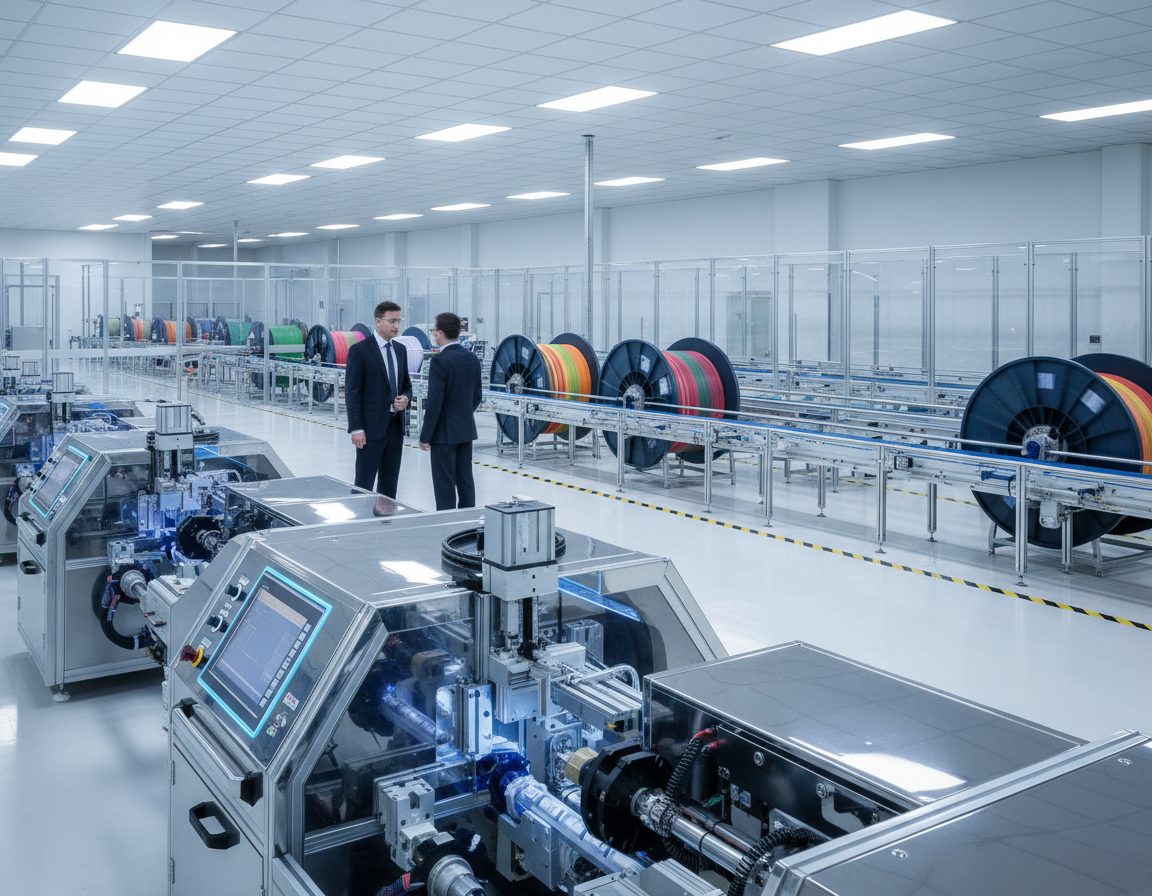

Advanced SZ Stranding Line Technology For Cable Assembly
This SZ stranding method creates alternating-direction lays that cut axial stiffness together with boost flexibility. As a result, it is ideal for drop cables, building drop assemblies, as well as any application that needs a flexible core. Cable makers moving toward automated fiber optic cable manufacturing employ SZ approaches to meet tight bend as well as axial tolerance specs.
Precision in the stranding stage protects optical performance. Modern precision stranding equipment uses servo-driven carriers, rotors, and modular pay-off racks that accept up to 24 fibers. These systems deliver precise lay-length control and allow quick reconfiguration for different cable types.
Automated tension control systems keep fibers within safe limits from pay-off to take-up. Servo pay-offs, capstans, and haul-off units maintain constant linear speed and target tensions. Typical fiber pay-off tension ranges from 0.4 to 1.5 N while reinforcement pay-offs run between 5 and 20 N.
Integration featuring a downstream fiber cable sheathing line streamlines manufacturing and lowers handling. Extrusion of PE, PVC, or LSZH jackets at 60–150 m/min syncs with stranding through a Siemens PLC. Cooling troughs as well as UV dryers stabilize the jacket profile right after extrusion to prevent ovality and reduce mechanical stress.
Optional reinforcement and armoring modules add strength without compromising flexibility. Reinforcement pay-off racks accept steel wires or FRP rods. Armoring units wrap steel tape or wire with adjustable tension to meet specific mechanical ratings.
Built-in quality control prevents defects before cables leave the line. In-line geometry checks, fiber strain monitors, and optical attenuation measurement detect excess loss or mechanical strain caused by stranding or sheathing. These checks support continuous automated fiber optic cable manufacturing workflows and cut rework.
The combination of a robust sz stranding line, high-end precision stranding equipment, and a synchronized fiber cable sheathing line provides a scalable solution for manufacturers. This blend raises throughput while protecting optical integrity and mechanical performance in finished cables.
Fiber Coloring Machine And Identification Systems
Coloring as well as identification are critical in fiber optic cable manufacturing. Accurate color application minimizes splicing errors and accelerates field work. Advanced equipment combines fast coloring featuring inline inspection, ensuring high throughput together with low defect rates.
Today’s high-speed coloring technology supports multiple channels and quick curing. Machines can operate 8 to 12 color channels simultaneously, aligning with secondary coating lines. UV curing at speeds over 1500 m/min ensures color and adhesion stability for both ribbon and counted fibers.
Below, we discuss standards together with coding prevalent in telecom networks.
Color coding adheres to international telecom standards for 12-color cycles and ribbon schemes. This compliance aids technicians in installation and troubleshooting. Consistent coding significantly reduces field faults and accelerates network deployment.
Quality control integrates high-spec fiber identification systems into manufacturing lines. In-line cameras, spectrometers, as well as sensors detect color discrepancies, poor saturation, and coating flaws. This PLC/HMI interface alerts to issues together with can pause the line for correction, safeguarding downstream processes.
Machine specifications are vital for uninterrupted runs and material compatibility. Leading equipment accepts UV-curable pigments as well as inks, compatible using common coatings together with extrusion steps. Pay-off reels accommodating 25 km or 50 km spools ensure continuous operation on high-volume lines.
Supplier support is essential for US manufacturers adopting these technologies. Shanghai Weiye and other established vendors offer customizable channels, remote diagnostics, and onsite training. Such supplier support reduces ramp-up time and enhances the reliability of fiber optic cable production equipment.
Specialized Solutions For Fiber In Metal Tube Production
Metal tube and metal-armored cable assemblies provide robust protection for fiber lines. They are ideal for direct-buried and industrial applications. The controlled routing of coated fibers into metal tubes prevents microbends, ensuring optical performance remains within specifications.
Processes depend on precision filling together with centering units. These modules, in conjunction with fiber optic cable manufacturing equipment, ensure concentric placement as well as controlled tension during insertion.
Armoring steps involve the use of steel tape or wire units with adjustable tension and wrapping geometry. This process benefits armored fiber cable production by preventing compression of fiber elements. It also keeps reinforcement wires at typical diameters of ø0.4–ø1.0 mm.
Coupling armoring with downstream sheathing and extrusion lines results in a finished outer jacket made of PE, PVC, or LSZH. An optical fiber cable production machine must handle pay-off reels sized for reinforcement and align with sheathing tolerances.
Quality checks include crush, tensile, as well as aging tests to confirm the armor does not exceed allowable stress on fibers. Standards-based testing helps ensure long-term reliability in field conditions.
Turnkey solutions from established manufacturers integrate metal tube handling featuring SZ stranding and sheathing lines. These solutions include operator training together with maintenance schedules to sustain throughput on fiber optic cable manufacturing equipment.
Buyers should consider compatibility with armored fiber cable production modules, ease of changeover, as well as service support for field upgrades. Such considerations reduce downtime together with protect investment in an optical fiber cable line output machine.
Fiber Ribbon Line And Compact Fiber Unit Production
Modern data networks require efficient assemblies that pack more fibers into less space. Manufacturers employ a fiber ribbon line to create flat ribbon assemblies for rapid splicing. That production method uses parallel processes and precise geometry to meet the needs of MPO trunking and backbone cabling.
Advanced equipment ensures accuracy and speed in production. A fiber ribbone line typically integrates automated alignment, epoxy bonding, precise curing, and shear/stacking modules. In-line attenuation and geometry testing reduce rework, maintaining high yields.
Compact fiber unit line output focuses on tight tolerances together with material choice. Extrusion as well as buffering create compact fiber unit constructions with typical tube diameters from 1.2 to 6.0 mm. Common materials include PBT, PP, and LSZH for durability and flame performance.
High-density cable solutions aim to enhance rack as well as tray efficiency in data centers. By increasing fiber count per unit area, these designs shrink cable diameter as well as simplify routing. They are compatible using MPO trunking and high-count backbone systems.
Production controls together with speeds are critical for throughput. Modern lines can reach up to 800 m/min, depending on configuration. PLC as well as HMI touch-screen control enable quick parameter changes together with synchronization across multiple lines.
Quality and customization remain key differentiators for manufacturers like Shanghai Weiye. Electronic monitoring, customizable ribbon counts, stacking patterns, as well as turnkey integration using sheathing together with testing stations support bespoke high-output fiber cable production line requirements.
| Key Feature | Fiber Ribbon System | Compact Unit | Benefit To Data Centers |
|---|---|---|---|
| Typical operating speed | Up to 800 m/min | Up to 600–800 m/min | More output for large deployment projects |
| Key Processes | Automated alignment, bonding, and curing | Extrusion, buffering, tight-tolerance winding | Consistent geometry and lower insertion loss |
| Primary materials | Engineered tapes and bonding resins | PBT, PP, and LSZH jackets/buffers | Long service life with compliance benefits |
| Quality testing | Real-time attenuation and geometry inspection | Dimensional control and tension monitoring | Lower failure rates and faster rollout |
| Line integration | Sheathing and splice-ready stacking | Modular units supporting high-density cable designs | Streamlined MPO trunking and backbone builds |
Optimizing High-Speed Internet Cables Production
Efficient high-speed fiber optic cable production relies on precise line setup and strict process control. To meet US market demands, manufacturers must adjust pay-off reels, extrusion dies, and tension systems. That ensures optimal output for flat, round, simplex, and duplex FTTH profiles.
Cabling Systems Used In FTTH Applications
FTTH cabling systems must accommodate various drop cable types while maintaining consistent center heights, like 1000 mm. Production lines for FTTH include 2- and 4-reel pay-off options. They also feature reinforcement pay-off heads for enhanced strength.
Extruder models, such as a 50×25, control jacket speeds between 100 and 150 m/min, depending on LSZH or PVC. Extrusion dies for 2.0×3.0 mm profiles guarantee reliable jackets for field installation.
Fiber Pulling Process Quality Assurance
Servo-controlled pay-off as well as take-up units regulate fiber tension between 0.4–1.5 N to prevent excess loss. Inline systems conduct fiber pull testing, attenuation checks, mechanical tensile tests, as well as crush together with aging cycles. That testing regime verify performance.
Key control components include Siemens PLCs and Omron PID controllers. Motors from Dongguan Motor and inverters from Shenzhen Inovance ensure stable operation and easier maintenance.
Meeting Industry Standards For Optical Fiber Drawing
A well-tuned fiber draw tower produces fibers that meet ITU-T G.652D as well as G.657 standards. The goal is to achieve ≤0.2 dB/km excess loss at 1550 nm for high-consistency single-mode fiber.
Choosing the best equipment for FTTH cables involves evaluating speed, customization, warranty, and local after-sales support. Top FTTH cable production line manufacturers provide turnkey layouts, remote monitoring, as well as operator training. This cuts ramp-up time for US customers.
Final Thoughts
Advanced FTTH cable making machinery integrates various components. These include fiber draw towers, secondary coating, coloring lines, SZ stranding, and ribbon units. It also includes sheathing, armoring, and automated testing for consistent high-speed fiber production. A complete fiber optic cable production line is designed for FTTH and data center markets. It enhances throughput, keeps losses low, and maintains tight tolerances.
For U.S. manufacturers as well as system integrators, partnering with reputable suppliers is key. They should offer turnkey systems with Siemens or Omron-based controls. This incorporates on-site commissioning, remote diagnostics, as well as lifetime technical support. Companies like Shanghai Weiye Optic Fiber Communication Equipment Co provide integrated solutions. These systems simplify automated fiber optic cable manufacturing and reduce time to manufacturing.
Technically, ensure line configurations adhere to IEC 60794 and ITU-T G.652D/G.657 standards. Verify tension and curing settings to meet excess loss targets, such as ≤0.2 dB/km at 1550 nm. Adopt preventive maintenance cycles of roughly six months for reliable 24/7 operation. When planning a new FTTH cable production line, first evaluate required cable types. Collect product drawings and standards, request detailed equipment specs as well as turnkey proposals, together with schedule engineer commissioning together with operator training.
