An intermittently bonded ribbon production system is used to manufacture flexible fiber groups for contemporary, high-count cable architectures. It keeps fibers properly aligned for expedited mass fusion splicing, yet allows the fiber group to remain flexible within a compact cable core.
Unlike fully bonded ribbons, intermittent bonded ribbons feature discrete bonding points at predetermined intervals. This strategic placement keeps the fibers in an organized sequence while the ribbon can flexibly roll into circular loose tubes and other confined spaces.
Network engineers employ this method when faced with constraints in duct space, splice closures, and equipment racks. A meticulously crafted ribbon cable facilitates dense network deployments in data centers, telecom backbones, metro networks, FTTx feeder systems, and 5G transport networks.
Fiber Draw Tower Fiber Secondary Coating Line Fiber Draw Tower
Important Points
- An intermittent bonded ribbon production line supports flexible, high-density fiber layouts.
- Separated bond points maintain optical fiber order without creating a rigid ribbon.
- Flexible ribbons help cable makers fit more fibers into compact circular cable designs.
- Stable fiber order helps accelerate mass fusion splicing.
- Ribbon cable systems support data centers, telecom backbones, and fiber access networks.
Overview Of An Intermittent Bonded Ribbon Production Line
This ribbon production method enables the creation of fiber designs that combine high density with practical handling. This method involves forming bonds at planned positions, allowing for the movement of fiber subunits between these points.
The method enables the incorporation of a higher number of fibers within constrained duct spaces. It also helps maintain the organized ribbon structure, essential for efficient splicing and cable assembly processes.
What Is An Intermittently Bonded Fiber Ribbon?
An intermittently bonded optical fiber ribbon connects adjacent fibers at specific intervals along its length. The segments between these bonds remain unencumbered, enabling the ribbon to adopt various configurations without rigidification.
The design is frequently known as a rollable, flexible, or spider web ribbon. It contrasts with the conventional flat ribbon cable, which maintains a fixed profile along its entire length.
During splicing, the fibers can be arranged into a flat ribbon for mass fusion operations. In cable production, the same fibers form compact bundles, optimizing space utilization within the cable.
Why High-Density Networks Use Flexible Ribbon Technology
Fiber network planners must address the challenge of increasing capacity within densely populated conduits, data centers, and access routes. The flexible nature of a flat cable structure helps ribbon groups pack into smaller cable cores, preserving fiber order.
A fiber density ratio provides a critical metric for network builders, comparing the space occupied by fibers to the total cable area. Intermittent bonding can improve this ratio, allowing ribbon groups to occupy available spaces within the cable.
For installers, high-density fiber cables reduce the number of cables required for a given route. This design also supports high fiber counts without necessitating a rigid ribbon stack.
Intermittent Bonded Ribbon Production Line
| Ribbon Design Feature | Intermittently Bonded Design | Traditional Continuous Ribbon |
|---|---|---|
| Bond pattern | Individual bond points at controlled spacing | Continuous bonds along the ribbon length |
| Fiber shape between bonds | Can curl or roll to fit compact cable spaces | Remains predominantly flat and planar |
| Splice preparation position | Can return to a flat format for mass fusion splicing | Is continuously maintained in a flat ribbon shape |
| Role in cable packing | Enables dense placement of flexible fiber subunits | Relies on a relatively rigid ribbon stack |
| Common cable use | Flexible ribbon and high-density fiber cable designs | Traditional flat ribbon cable designs |
Intermittently Bonded Ribbon Materials And Construction
An intermittently bonded ribbon combines precise fiber placement with adaptable bonding points. Its architecture supports compact cable arrangements while allowing effortless separation during handling, routing, and splicing.
Choosing appropriate materials significantly influences ribbon width, peel characteristics, and durability. Each optical fiber subunit must maintain its fibers securely without imparting undue stiffness to the ribbon.
Optical Fiber Counts And Subunit Arrangement
Flexible bonded ribbons may support 4, 8, 12, 24, or up to 36 fibers. The choice of fiber count is determined by cable capacity, available duct space, and the requirements of subsequent mass fusion splicing.
A 12-fiber configuration often employs six subunits, with two adjacent fibers in each subunit. The fibers within a subunit may be in contact or separated by no more than one and a half times the fiber diameter.
Controlled gaps introduced between subunits ensures ribbon flexibility. These gaps typically span from 5 to 100 micrometers, while the fibers remain aligned side by side across the ribbon width.
| Ribbon Construction Element | Typical Arrangement | Process Purpose |
|---|---|---|
| Fiber count | 4, 8, 12, 24, or up to 36 fibers | Matches cable density and splice capacity |
| Subunit layout | Two adjacent fibers per optical fiber subunit | Supports controlled separation between groups |
| Subunit fiber spacing | Touching or up to 1.5 fiber diameters | Supports a small and consistent subunit profile |
| Subunit separation gap | 5 to 100 micrometers | Allows greater movement and flexibility near bond points |
UV-Curable Resin With Wet-On-Wet Bonding
Subunit coatings and bonding materials frequently employ UV-curable resin systems. Wet-on-wet bonding involves applying the bond material to the uncured subunit coating, which then cures together under UV energy.
Wet-on-wet bonding produces a diffusion zone where the materials interact. For intermittent bonded ribbons, this zone can range from 2 to 50 micrometers, with 5 to 15 micrometers being the typical focused process range.
UV-curable resin materials can blend at the interface before curing. This encourages molecular entanglement between the bond and the optical fiber subunit coating, resulting in bonds that are both secure and flexible.
Core Equipment In An Intermittent Bonded Ribbon Production Line
A fiber ribbon line integrates advanced motion control with meticulous material handling. Each station maintains fiber cleanliness, alignment, and stability from the initial payoff to the final winding.
The production equipment supports adjacent fiber placement, subunit coating, intermittent bonding, UV curing, cooling, inspection, and take-up. This sequential process enables manufacturers to manufacture customized flexible ribbon, preserving the integrity of the fiber order.
Fiber Payoff And Tension Control System
Payoff units deliver individual optical fibers at a consistent rate from spools. Guides, rollers, and tension sensors prevent sudden pulls, averting twist, slack, or uneven spacing.
Within a fiber ribbon production line, maintaining balanced fiber paths before alignment is critical. Stable tension is essential for forming flat subunits and ensuring accurate color sequence control.
Coating Die And Discrete Bond Applicator
A coating die places a UV-curable material around groups of two or more fibers. This material defines subunits while maintaining fibers in a flat, parallel layout.
The discrete bond applicator subsequently deposits a second resin between neighboring subunits at planned intervals. This spacing allows the ribbon to flex and separate when needed, a critical aspect of custom ribbon cable design.
| Line Equipment | Primary Function | Process Benefit |
|---|---|---|
| Payoff and tension unit | Supplies fibers under controlled tension | Helps prevent fiber twist and inconsistent loading |
| Subunit coating die | Applies coating to form defined fiber subunits | Supports stable subunit width and geometry |
| Bond deposition applicator | Applies resin at controlled intervals | Creates flexible links between adjacent subunits |
| UV curing and take-up unit | Handles UV curing, cooling, inspection, and final winding | Protects bond quality and preserves fiber order |
UV Curing, Cooling, And Ribbon Take-Up Equipment
UV lamps cure the subunit coating and intermittent bonds while the resin is wet. This wet-on-wet process forms a cohesive interface between materials, influencing bond strength.
Cooling systems reduce ribbon temperature before inspection and winding. The fiber ribbon line may also employ vision checks to monitor width, bond position, and surface quality.
The take-up system winds the finished ribbon with low, even tension. Proper winding protects the cured ribbon structure, ensuring the custom ribbon cable is ready for later cabling, splicing, or connector assembly.

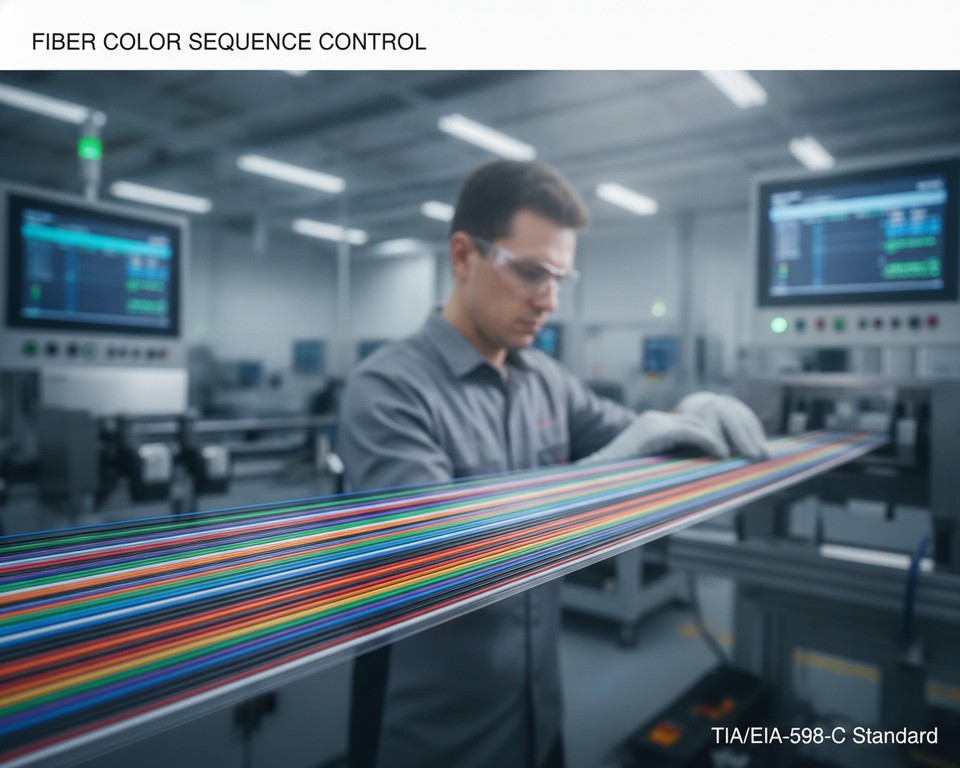

Fiber Alignment, Preparation, And Color Sequence Management
Reliable ribbon cable production starts with fiber preparation. Each strand must enter the assembly clean, centered, and in the correct sequence before the coating and bonding processes commence.
Managing Fiber Identification During Splicing And Maintenance
A clearly defined fiber color sequence is indispensable for splicing, testing, and maintenance operations. The standard 12-fiber sequence, typically consisting of blue, orange, green, brown, slate, white, red, black, yellow, violet, rose, and aqua, facilitates swift identification.
When fiber counts increase, the sequence may be repeated within controlled subunits. This method ensures that each ribbon cable remains organized within splice trays, closures, and cable connector layouts.
| Fiber Number | Standard Color | Production Purpose |
|---|---|---|
| 01 | Blue | Begins the recognized fiber color sequence |
| 2 | Orange | Provides rapid visual identification |
| 03 | Standard green | Supports the required planar sequence |
| 04 | Standard brown | Supports confirmation of subunit position |
| 5 | Standard slate | Supports identification around the middle of the sequence |
| 6 | Standard white | Supports clear visibility during inspection |
| 07 | Standard red | Helps maintain accurate splice documentation |
| 8 | Standard black | Maintains sequence recognition in trays |
| 09 | Yellow | Assists field restoration activities |
| 10 | Standard violet | Separates late-sequence fibers clearly |
| Position 11 | Standard rose | Helps maintain clarity in higher-count ribbon layouts |
| 12 | Standard aqua | Finishes the standard 12-fiber color sequence |
Preventing Fiber Twisting And Uneven Tension
Fiber guides and payoff units are important in maintaining fibers in a flat, side-by-side configuration. This prevents twist, crossing, and gaps that could alter the ribbon’s width or distort the bond pattern.
Operators meticulously monitor tension across every path before the fibers reach the coating die. Proper alignment is critical for mass fusion splicing and ensures the finished ribbon cable fits its intended cable connector system.
UV Curing And Intermittent Bond Application Process
Intermittent bonding integrates fiber subunits without solidifying the ribbon into a rigid form. This method allows dense routing and ensures dependable handling within a flexible flat cable. It also aids in maintaining the planned fiber layout during subsequent cable assembly.
Applying Intermittent Bonds At Predetermined Intervals
Bond applicators place resin at intervals ranging from 10 mm to 1,000 mm. The bond locations may stagger along the ribbon’s length. This arrangement provides support to adjacent subunits while allowing sufficient free length for movement.
The bond applicator delivers a measured amount of UV-curable resin at each bond point. Bonds often exhibit a diamond-like shape, with wider centers and narrower ends. The tapered ends mitigate abrupt stress changes when the cable bends or twists.
Creating Flexible And Strong Bond Interfaces
Wet-on-wet bonding involves applying a second material before the first subunit coating cures. The uncured layers can blend before undergoing a shared UV curing step. This approach fosters a gradual interface, unlike a sharp material boundary.
This gradual interface influences various properties, including color, Young’s modulus, and surface friction. Bond ends may feature saddle-like surfaces with both convex and concave curves. These features help the bond resist peeling while facilitating separation when required.
Controlling Curing Performance
UV curing systems must deliver consistent energy across the ribbon. Factors such as line speed, lamp output, resin volume, and exposure time impact the bond’s quality. Selecting the right UV-curable resin ensures rapid curing without compromising the fiber coating.
Process personnel carefully track bond shape, cure level, and ribbon flexibility during production. The cured cable should transition smoothly from a flat plane to various forms without bond damage. Controlled curing ensures consistent handling throughout winding and downstream processing.
Flexible Flat Cable And Fiber Ribbon Quality Control
Ensuring each flat ribbon cable’s integrity is a meticulous process. It involves checking the cable’s flexibility and its readiness for subsequent splicing operations. During production, operators assess the fiber count, color sequence, and precise positioning of each fiber. They also evaluate the cable’s winding condition, ensuring its optimal state for assembly.
Frequent quality checks are important in identifying any defects in the coating, uneven tension, or misplaced bonds. These issues, if left unaddressed, could compromise the cable’s performance in subsequent stages of production.
Inspection Of Bond Spacing, Ribbon Width, And Thickness
The spacing between bonds is a critical parameter, requiring adherence to a specific design range. This spacing is essential for the cable’s flexibility, ensuring that the fibers remain aligned within their designated subunits during bending.
Inspection protocols are in place to confirm that each bond correctly connects adjacent subunits. This attention to detail ensures that the ribbon lays flat, facilitating smooth mass fusion splicing processes.
| Inspection Point | What Is Checked | Process Value |
|---|---|---|
| Fiber identification | Fiber count, color sequence, and position | Supports correct splicing and maintenance work |
| Bond pattern | Bond placement, separation distance, and subunit joining | Preserves flexibility while maintaining fiber order |
| Finished ribbon profile | Ribbon width, thickness, and planar condition | Helps the ribbon fit handling and splicing tools |
| Surface condition | UV cure state, coating coverage, and defects | Protects the ribbon against damage during take-up |
Mechanical And Optical Performance Testing
Mechanical testing focuses on bond separation, cohesive strength, elongation, and handling behavior. These evaluations are essential to confirm that the manufacturing process controls are consistent across similar designs of flat cables.
Optical inspection involves evaluations after bonding and curing. It ensures that the core, cladding, primary coating, secondary coating, and color layer are adequately protected throughout the manufacturing process.
Optical attenuation checks and handling evaluations are integral to routine inspections. The quality of winding is also scrutinized to ensure that the finished flat ribbon cable is in a controlled condition for assembly.
Production Automation, Efficiency, And Precision Winding
High-efficiency ribbon production relies on a unified production line. Each stage, from fiber payoff to inspection and take-up, must harmonize seamlessly. This synchronization ensures the preservation of fiber geometry and facilitates consistent output, critical for high-speed data transmission cables.
Production Line Synchronization And Process Data Monitoring
Control systems integrate payoff speed, fiber tension, resin delivery, bond placement, UV curing, cooling, and take-up. Adjustments are made in real time to maintain ribbon stability when speed variations occur at any station.
Production records meticulously document fiber color sequences, bond intervals, cure settings, ribbon dimensions, and winding status. This detailed history allows operators to track the production of each custom ribbon cable.
- Controlled payoff tension reduces fiber stretching and slack.
- Accurate bond timing keeps discrete joints evenly spaced.
- Dimension monitoring identifies width and thickness variations quickly.
- Winding records support lot traceability and downstream handling.
Winding Ribbon For Downstream Cable Production
A precision cable winder helps ensure the ribbon is wound onto a spool with uniform tension and controlled movement. This method prevents edge crushing, layer crossing, and sudden pulls during subsequent cable processing.
Completed ribbon packages can be stacked, rolled, or loaded into central tube and loose tube designs. These configurations enable the creation of high-speed data transmission cables, even in areas where duct additions are impractical.
For customized ribbon products, the winding pattern must align with subsequent processes. Proper spool buildup is essential for smooth payout during stranding, tube loading, and cable assembly.
| Monitoring Area | Primary Control Focus | Resulting Benefit |
|---|---|---|
| Optical fiber payoff | Consistent tension with correct fiber color order | Orderly ribbon placement during cable assembly |
| Bond application | Controlled bond intervals and resin quantity | Consistent flexible behavior in downstream operations |
| UV cure stage | Regulated UV intensity and exposure duration | Properly cured bonds before ribbon winding |
| Cable precision winder | Consistent traverse, winding tension, and layer formation | Reliable payout during central tube or loose tube processing |
Ribbon Cable Applications, Fusion Splicing, And Connector Planning
Ribbon fiber plays an important role in dense links within data centers, telecom backbones, metro rings, and FTTx feeder routes. It also excels in indoor FTTH runs, 5G fronthaul, and outdoor point-to-point networks where space is at a premium.
A carefully designed ribbon cable assembly enables crews to manage high fiber counts efficiently, without increasing bulk. Each high-speed data transmission cable must align with the site’s route, enclosure space, and future expansion plans.
Advantages Of Mass Fusion Splicing
A ribbon fusion splicer facilitates the joining of an entire ribbon in a single operation. For a 12-fiber ribbon, a matching cleaver can prepare all 12 fibers simultaneously before the automated fusion process commences.
Mass fusion processing lowers handling time and ensures consistent fiber alignment. Splice loss is reported to remain below 0.05 to 0.10 dB per fiber, contingent upon controlled preparation, cleaning, and machine settings.
Loose tube cable, on the other hand necessitates a different strategy at the splice cassette. Technicians must separate the fibers, then splice them individually, which prolongs the ribbon cable assembly process.
Planning Connections For Dense Fiber Links
Multi-fiber connections commonly use MPO or MTP trunks, harnesses, fanout cables, and cassette modules. The chosen cable connector must align with the fiber count, polarity method, connector gender, and fiber type.
Planning also considers transceiver requirements and the full link loss budget. A high-speed data transmission cable, when used with parallel optics, demands a clear polarity path from equipment port to patch panel.
| Connection Planning Item | Primary Control | Common Application |
|---|---|---|
| Ribbon fiber count | Required splice capacity and cassette configuration | Backbone links using 12-fiber or 24-fiber ribbons |
| MPO or MTP multi-fiber connector | Polarity management and equipment port compatibility | Data center trunks and 5G equipment rooms |
| Fanout or harness cable | Transition from multi-fiber connections to single-fiber ports | Switch ports and high-density patching areas |
| Network loss budget | Allowed loss from splices, connectors, and fiber length | High-speed data transmission cable routes |
Shanghai Weiye OFC Equipment For Ribbon Line Projects
Shanghai Weiye OFC Equipment, commonly referred to as SHWY, specializes in machinery for the production of optical fibers and cables, serving markets in the United States and globally. Its offerings are designed to support consistent manufacturing, facilitate clear operator control, and enable seamless integration into production lines.
For projects requiring an intermittent bonded ribbon production line, SHWY provides equipment for each stage of ribbon handling, curing, and winding with suitable machinery.
SHWY Experience In Optical Fiber And Cable Machinery
Established in 1998, SHWY’s journey in the industry has been marked by significant milestones. By 2012, its annual turnover surpassed 200 million CNY, strengthening its position within a prominent Chinese fiber and cable conglomerate as a joint venture.
In 2020, SHWY transitioned to independence, relocating to a state-of-the-art facility in central Shanghai. This move underscored its commitment to advancing equipment research, manufacturing, and process application while supporting operational stability.
SHWY Production Equipment Portfolio
The SHWY equipment portfolio includes a diverse range of equipment, including fiber draw towers, coloring machines, secondary coating lines, SZ stranding equipment, and cable sheathing lines. Notably, it also features a fiber ribbon line tailored for flat, high-count fiber formats.
For ribbon projects, a cable precision winder plays a critical role in maintaining orderly package buildup and controlled tension. This ensures safer transport and more consistent feeding into subsequent cable production stages.
Additional SHWY equipment includes FTTH lines, indoor cable equipment, and OPGW fiber-in-stainless-steel-tube systems. These options enable manufacturers to integrate an intermittent bonded ribbon production line with complementary cable processes.
Conclusion
A complete intermittent bonded ribbon line brings together fiber alignment, controlled bonding, UV curing, inspection, and precision winding into a unified process. Each step helps preserve fiber sequence while maintaining the necessary bendability for dense cable designs. This combination is critical for the creation of high-density optical networks.
The resultant ribbon cable supports efficient mass fusion splicing and organized fiber management. It is ideal for applications with high fiber counts, confined ducts, limited tray space, and frequent splice points. This makes it a cornerstone in many high-density ribbon cable routes.
Comprehensive project planning reaches beyond the production line. It encompasses the cable structure, closure capacity, fusion tools, test methodologies, labeling, and restoration records. These elements must align with the planned network architecture for seamless integration.
